Clarke Cone Ascent via Nonsmooth Paths to Pareto Fronts of Maximum Magnitude

Optimization is often introduced through smooth landscapes and ordinary gradients. In multiobjective optimization, however, the geometry of a finite approximation set can change abruptly: points can switch nondomination status, layers can appear or disappear, and different points can suddenly become active in shaping the dominated region. At such events, the objective is no longer classically differentiable. This is where a Clarke-type viewpoint becomes natural.

The demo below explores a simple idea for Pareto front approximation. Instead of evaluating only the first nondominated front, we decompose a finite approximation set into its successive nondomination layers. The first layer has highest priority, while deeper layers act only as tie-breakers. In this way, dominated points are not ignored completely, but they are never allowed to outweigh the quality of the first front.

The key geometric quantity is the magnitude of the anchored dominated set. For a finite set ${B}$ in a biobjective maximization problem, let ${D(B)}$ denote the region dominated by ${B}$ and anchored at the origin. In the two-dimensional setting used here, the magnitude is

${\mathrm{Mag}(D(B)) = 1 + \frac{X(B)+Y(B)}{2} + \frac{HV(B)}{4}}$

where ${X(B)}$ and ${Y(B)}$ are the maximal attained values in the two objectives, and ${HV(B)}$ is the anchored hypervolume. So magnitude is not just area: it also rewards how far the dominated region reaches in each coordinate direction.

For an approximation set ${A}$ with nondomination layers ${A^{(1)},A^{(2)},\dots,A^{(L)}}$ , we can then build a layered indicator. In lexicographic language, one compares the magnitudes of the layers one after another, giving absolute priority to the first front. For computation, it is convenient to use a small weighted scalar surrogate

${J_{\varepsilon,\tau}(A)=\sum_{i=1}^{L}\varepsilon^{\,i-1}\,\mathrm{Mag}(D(A^{(i)}))-\tau R_{\sigma}(A)}$

with ${0<\varepsilon\ll 1}$ . The first term rewards layered magnitude; the second is a short-range repulsion term that discourages exact duplicates and helps to keep nearby points apart during the numerical iterations.

The ascent step itself is a projected Clarke ascent step. Starting from the current approximation set ${A_k}$ , one chooses a generalized gradient direction ${g_k \in \partial^C J_{\varepsilon,\tau}(A_k)}$ , takes a small ascent step, and projects back to the feasible region:

${A_{k+1}=\Pi_{\Omega^\mu}\!\left(A_k+\alpha_k \hat g_k\right)}$

where ${\Pi_{\Omega^\mu}}$ denotes Euclidean projection and ${\hat g_k}$ is a normalized pointwise direction. Between geometric events, this behaves like an ordinary gradient-based motion. At the moments where the active dominated-set geometry changes, the Clarke cone viewpoint provides the right first-order language.

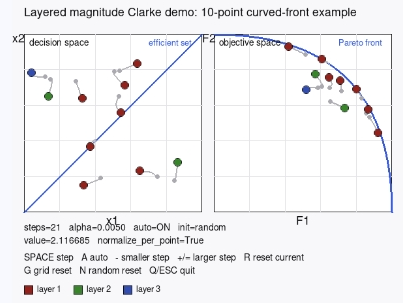

In the interactive example, one can watch how an initially imperfect approximation set moves toward the Pareto front. First, the dominant first-layer term drives the points toward front quality; later, the repulsion term helps distribute them more evenly. In the curved ten-point example, the motion becomes especially visible: in decision space, paths bend toward the efficient diagonal, while in objective space their images bend toward the curved Pareto front.

I like this example because it turns a fairly abstract idea from nonsmooth optimization into something one can actually see. The objective is only piecewise smooth, yet the optimization still has a clear geometric logic: climb in a generalized ascent direction, project back to feasibility, and let the layered magnitude pull the approximation set toward a better front.

Interactive demo:
Interactive python demo of Clarke cone ascent for layered magnitude

Code and reproducibility:
GitHub repository
